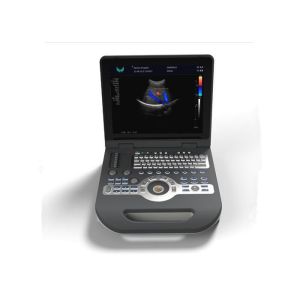

    Portable Ultrasound Scanner Color Doppler Machine With 15 Inch LCD Monitor

    Ask Lasest Price
    Brand Name : BIO
    Model Number : 5000N
    Price :
    Payment Terms : Credit card, Paypal, T/T
    Delivery Time : 7 working - days since getting full payment
    Supply Ability : 200 units / month
    • Product Details
    • Company Profile

    Portable Ultrasound Scanner Color Doppler Machine With 15 Inch LCD Monitor

    ulti - frequency Portable Ultrasound Scanner CE Approved with 15 Inch LCD Screen


    Feature


    1.Easy to carry,small and light with comprehensive function

    2.15” HD LED display. Angle

    3.2D/CFM/PDI/PW/M scanning modes

    4.Integrated ultrasonic network platform,support DICOM transmit

    5.Big capacity built-in lithium battery

    6.Embed computer system ensure stabilization safe and fast running.


    Technical Specification


    Monitor15 inch LCD color display
    Scanning modeConvex,Trans-vaginal, high-frequency linear array,Micro-convex;4D array
    ModesB,B/B,B/M,CFM,CFM/B,PDI,PDI/B,PW
    batteryBig capacity lithium
    B/D dual-purposeLinear array: B/PWD; convex array: B/PWD
    Languages5
    Gray scale256 levels
    Depth display≥250mm
    Dynamic range0~120dB adjustable
    One-click optimization functionAvaialble
    Self-motion optimize functionAvaialble
    Image multiplying factorAvaialble
    Image modeDigital beam forming, tissue harmonic imaging.
    Picture zoomfunctionAvaialble
    Image storage≥160G
    Image storage, video storage, cine loop
    Frequency conversion2MHz-12MHz(Depending on the probe)
    Pseudo color encoding16 kinds can optional
    Gain adjusts8 segments TGC, B/M/D/C is independently adjustable
    E-zoommagnify 2 times of real time image
    Focus positiondynamic electron focusing
    Running hours≥8h
    Input power≤300VA
    Host weightabout 6 kg
    Host appearance size370 ×382×90mm
    Measurement & Calculations
    B modeDistance, circumference, area, volume, angle, ratio, and stenos rate
    M modeHeart rate, time, distance, speed, ratio, etc
    Gynecology measurementUterus, cervix, endometrial, ovary, follicular
    Obstetrics measurementEGA, ETD, fetal weight estimation, AFI index, OB report (including OB tables)
    Cardiology measurementLV measurement
    Urology measurementProstate volume, displacement volume, bladder capacity, and residual urine output
    PW measurementsTime, speed, Heart Rate, RI, PI, etc
    Other measurementSlice volume measurement, hip joint angle measurement


    Standard configuration


    1 unitmain unit
    1 pc3.5MHz convex probe
    1 pcPower cable


    Optional


    1 pc7.5MHz linear probe
    1 pc6.5MHz transvaginal probe
    1 pc5.0MHz micro-convex probe
    1 pc5.0MHz transrectal probe
    1 pcthermal printer
    1 pcdeluxe cart



    15 Inch Touch LCD 2D Ultrasound Color Dopple Machine Portable Diagnostic Ultrasound Device
