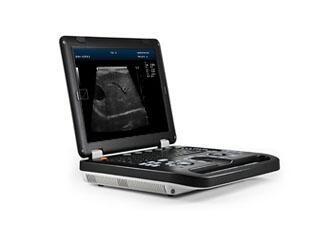

Portable Color Doppler Portable Ultrasound Scanner with Detectable depth of 2~30cm

Powerful function & Configuration

1	• Large screen display
2	• Built-in lithium battery
3	• Small size, light weight, easy to carry, N.W. ≤ 5kg
4	• Equipped with a wide range of probes for abdominal, obstetric, vascular, cardiac, small organ, urinary applications
5	• Built-in 4D module with optional 4D volume probe
6	• A variety of digital peripheral interfaces, provides a variety of image output methods
7	• PC platform, easy to operate, meet various software upgrades

Rich clinical application function

1	• B+CF (Dual Images) • B+CF/PDI/DPDI+PW (Triplex)
2	• Convex extended imaging technology
3	• Linear array deflection/Trapezoidal imaging technology
4	• Spatial compound Imaging technology
5	• Panoramic imaging technology (optional)
6	• 3D/4D imaging technology (optional)
7	• Speckle noise removal technology
8	• Pulse inversion tissue harmonic imaging technology (iTHI)

Digital Specification

Size (Diagonal)	15"LED display
Contrast Ratio	800:01:00
Resolution	1024*768 pixels
Brightness	230 cd/m2
Color Depth	24bit
Rotate Angle	± 18°
Grey Levels	256
Scanning depth	2-30cm
Transducer Ports	2
USB Ports	2
3D/4D module	3D/4D probe optional
Hard Disc	64GB (SSD), 120G/200GB SSD (Optional)
Printing Area	Image, report, Image+report
Ethernet Port	2(100Mb/1000Mb)
External Display	VGA, HDMI,etc..
Printer(Optional)	USB Printer, Digital Laser Printer, Digital B/W Thermal Printer
Pan/Zoom	Real-Time Image Zoom, Zoom Range: 100%~400%, Up/Down/Left/Right Inversion
Scanning Method	electronic linear, electronic convex, electronic micro-convex, electronic phased array, 4D probe

General Performance
Digital Broadband	12288 channels
Beam-former	Re-programmable
Transmit Voltage	Adjustable (15 steps)
Beam-former Frequency Range	1~40 MHz
Color Doppler
PRF variable	0.6-20kHz
Wall filter settings	≥ 5 steps
Angle steering for linear transducers	±5°, ±10°, ±15°
Real-time spatial filter	≥ 4 values
CFM palette	≥10 maps
PDI palette	≥10 maps
Doppler frequency selection	≥ 4 values
B/Color priority control / Color threshold control / CFM baseline control
color frame averaging / Transparent Color Mapping (TCM)
Pulsed Wave Doppler
PRF variable	0.6-20 kHz
Wall filter settings	≥ 10 steps
Angle steering for linear transducers	±5°, ±10°, ±15°
Stereo sound	volume control
PWD palette	≥10 maps
Doppler frequency selection	≥ 4 values
Real-time trace line with automatic calculation of spectrum parameters
