Brand Name :	BIO
Model Number :	ECG-3312B
Delivery Time :	7 working - days since getting full payment
Payment Terms :	Credit card, Paypal, T/T
Supply Ability :	500 units / month

Add to Cart

12 Channel Digital ECG Monitor 7 Inch Color LCD

Feature

● Portable delicate design, big color display and soft alphanumeric keyboard operation

● Accurate pulse pace identification and excellent auto – interpretation function

● High accuracy digital filter, auto - baseline adjustment

● 12 leads synchronously acquisition and record

● Working modes: Auto / Manual / R-R Rhythm / Storage

● 800*480, 7 inch color LCD to display detailed ECG information

● 250 cases storage and reply (SD card storage is optional)

● Rechargeable Li-ion battery supports continuous working for 4 hours

● Recording Mode: 3ch+++, 6ch, 6ch+, 12ch

● Real-time freeze function

● 210/215mm*20m roll or 210*140mm fold, high resolution thermal paper to print ECG

● Dimension: 347mm*293mm*83mm, 4.8kgs

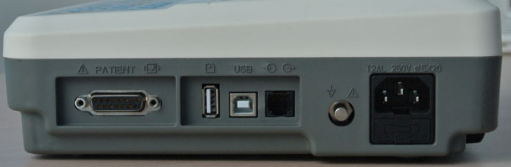

● Rs232 and USB interface support USB disk storage, laser printer printing and code scanning (optional),

ECG software is optional.

● Language: English, Chinese, French, Italian, Spanish, Russian

Specification:

Lead	Standard 12 leads	Time constant	≥3.2s
lead acquisition	12bit/1000Hz(synchronously 12 leads)	Frequency response	0.05～160Hz(-3db)
Work mode	22 Series:Man / Auto/Analysis	Noise level	＜15μVp-p
Work mode	33 Series: Man / Auto/Analysis/Storage	Noise level	＜15μVp-p
Filter	AC Filter : 50Hz / 60Hz	Inter-channel Interference	≤0.5mm
	EMG Filter : 25Hz / 45Hz
	Anti-Drift Filter : 0.15Hz (Adaptive)
CMMR	≥100dB (with AC FILTER)	Sensitivity	5,10,20, 40, Auto (mm/mV)
Input circuit	Floating; Protection circuit against	Recording mode	3ch+++,6ch,6ch+,12ch
	Defibrillator effect		Default Man. Mode is 3ch+ format
			Default Auto. Mode is 12ch+ format
Input Impedance	≥50MΩ	Paper speed	6.25,12.5,25,50mm/s(±3％)
Input circuit current	≤0.05μA	Paper	215 mm*20m Roll paper
Input circuit current	≤0.05μA	Paper	210mm*140mm Z-fold paper (only for 33 series)
Patient current leakage	＜10μA	Communication	RS232/ USB port
Calibrating voltage	1mV±2％	Power Supply	AC 110-230V(±10%),50/60Hz(±1Hz),60VA
Calibrating voltage	1mV±2％	Power Supply	DC Built-in rechargeable battery,14.4V(4400mmAh)
Voltage tolerance	≥±500mV	Dimension/Weight	330mm×270mm×72mm/3.8Kg
