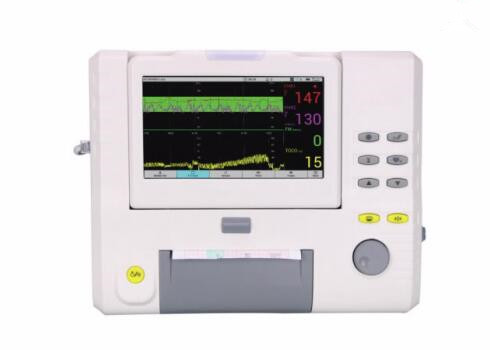

    7 Inch Screen Multi - Parameter Patient Monitor Automatic Fetal Movement Detection With Built - in Thermal Recorder

    7 Inch Screen Multi - Parameter Patient Monitor Automatic Fetal Movement Detection With Built - in Thermal Recorder


    Product details


    This series is a lightweight, compact fetal and maternal monitor, it can meet the need of whole

    stages of labor (including antepartum and intrapartum monitoring for fetus and mother),

    It alsocan be connected to the obstetrical central station.


    Features


    17”TFT Colour screen ,high resolution, folding up 90 degree
    2Built-in long life 110mm thermal printer
    3Special high sensitive probe
    4Long time data storage which can be played back and printed
    5Rechargeable battery supports longtime work
    6DSP technology, real time identifying and measurement for FHR, accurate and reliable results
    7Automatic Fetal Movement detection and accounting
    8Central Monitoring system
    9CTG scoring system: Krebs score and fischer score

    Specification


    1FHR (Fetal Heart Rate)

    Parameters: FHR1, FHR2 (Optional)

    Measurement range: 50-240bpm

    Accuracy:​ ±2 bpm

    Sweep speed: ×1, ×2, ×4, ×8

    2Transducer

    9 crystals, pulsed doppler, high sensitivity

    Frequency: 1.0MHz

    3TOCO

    Measurement range: 0-100

    TOCO baseline: 0, 5, 10, 15, 20 (selectable)

    4Data Storage3000 hours trend graph of fetal parameters
    5ScoringFischer, Krebs, NTS, ACOG
    6LanguageEnglish, Spanish, Turkish, French
    7Printer

    Type: Built-in thermal recorder, 110*100mm

    Print mode: Real-time recording, timed recording, selectable

    Print speed: 1, 2, 3 cm/min

    8NetworkWired / wireless terminal
    9Speakers2 speakers, power: 1W
    10Display

    7“ Color TFT LCD, adjustable

    Resolution:800*480

    11Power supply

    AC power input: 100~240V AC 1.0A VAC 50/60Hz

    Battery: Li-Ion battery, 2200mAh / 14.8V

    Maximum 4 hours of continuous monitoring FHR and TOCO

    12Parameters

    Standard: FHR, TOCO, FM

    Optional: FHR2, Fetus waker, Trolley, Wall Mount

    Touch screen function

    Connect with L8T Wireless station

    L8A (Maternal SpO2, PR, NIBP)

    FAS (Fetal Acoustic Stimulator)

    Twins FHR Measurement

    13Weight1.75kgs
    14Dimensions295(L)*240(W)*75(H)mm
